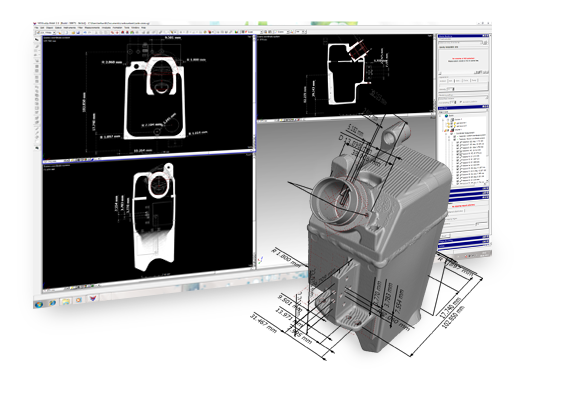

VGStudio MAX

VGStudio MAX is the high-end software from the Volume Graphics range of products for the visualization and analysis of CT data in combination with the optional add-on modules Coordinate Measurement, Nominal/Actual Comparison, Porosity/Inclusion Analysis, Wall Thickness Analysis, Fiber Composite Material Analysis and CAD Import (with PMI), VGStudio MAX has become a virtual standard for industrial voxel data analysis.

VGStudio MAX provides unique functionality for precise and fast analysis of voxel data. The Coordinate Measurement Module, for example, provides a highly accurate local surface determination feature achieving measuring accuracies of up to 1/10th of the voxel size. It is only with this surface determination on the basis of voxels that a precise comparison of actual voxel data and nominal CAD data becomes possible.

The unique possibility to simultaneously display and analyze volume and polygon data eliminates the need to perform a time-consuming and loss-prone conversion of volume data into surface data before a comparison can be made.

The possibility to process macros in batch mode and to create animations and surface models completes the functionalities of VGStudio MAX.
